LT1 to LS1 Fbody T56 Midplate Conversion Adapter
$39.95

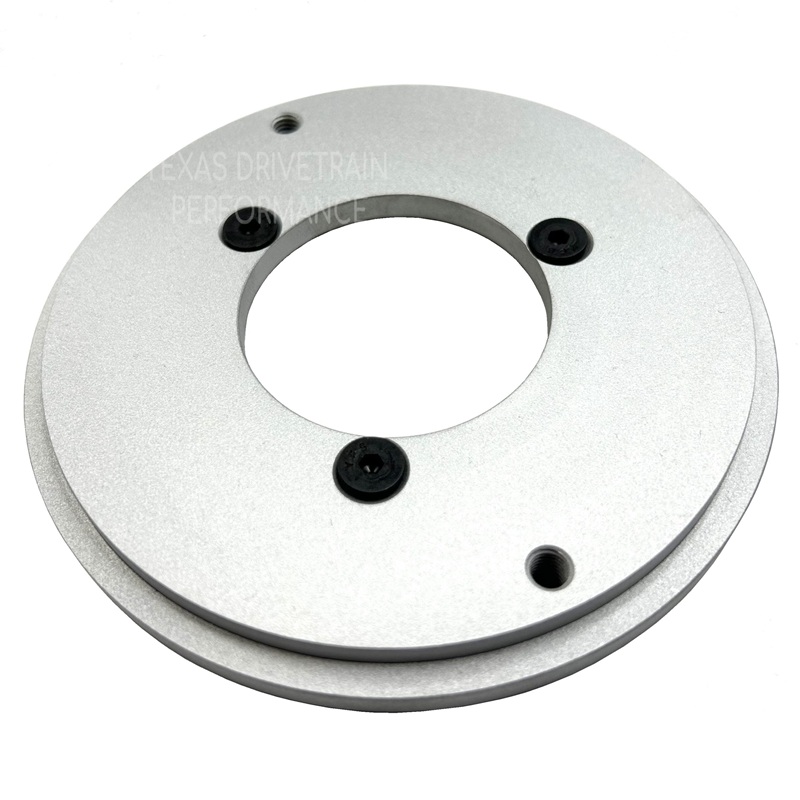

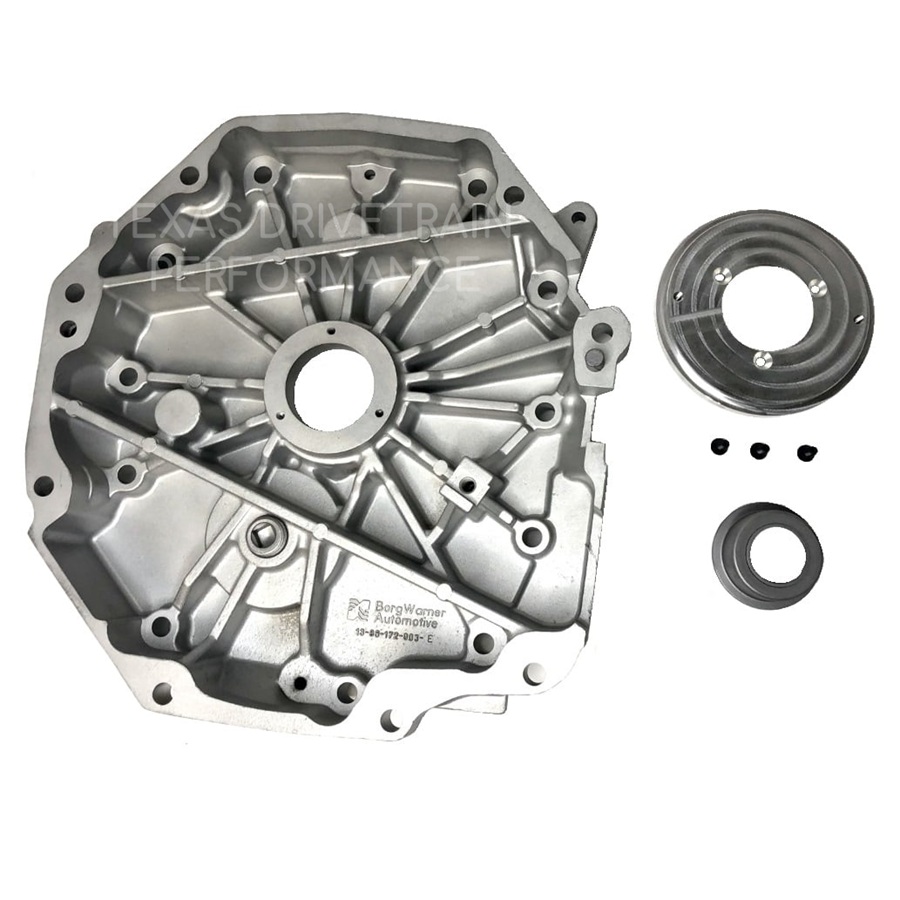

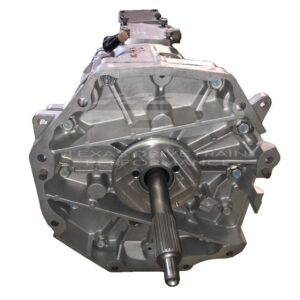

LT1 to LS1 Fbody T56 Midplate Conversion Adapter

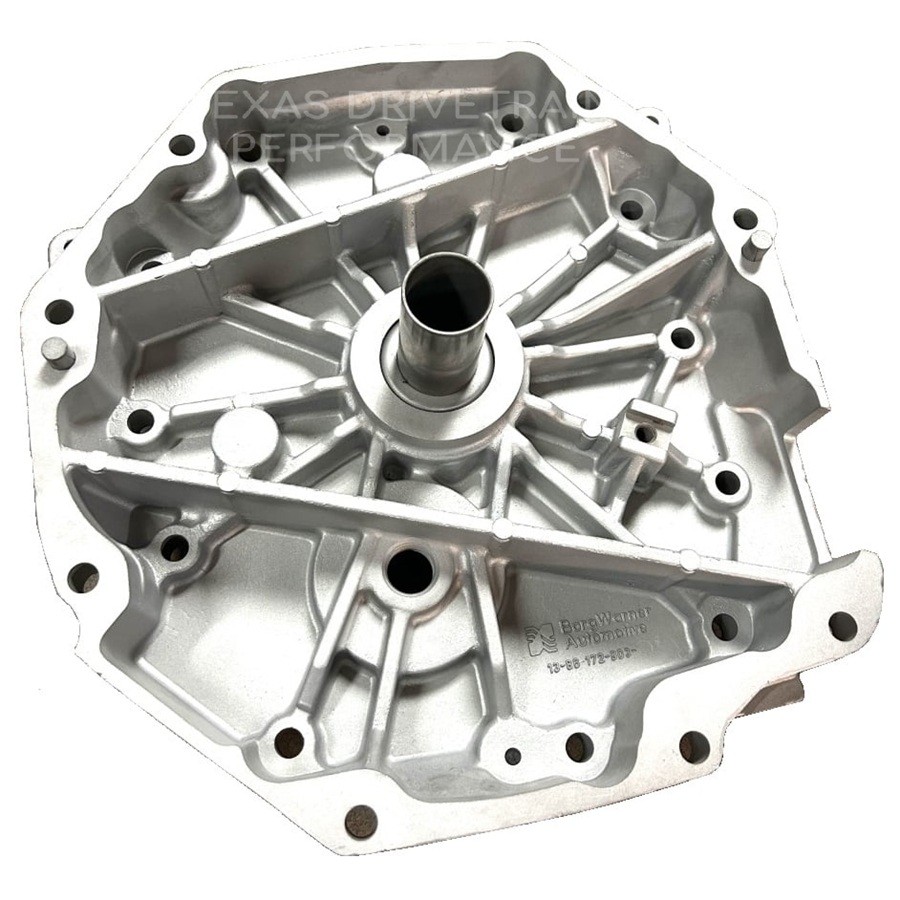

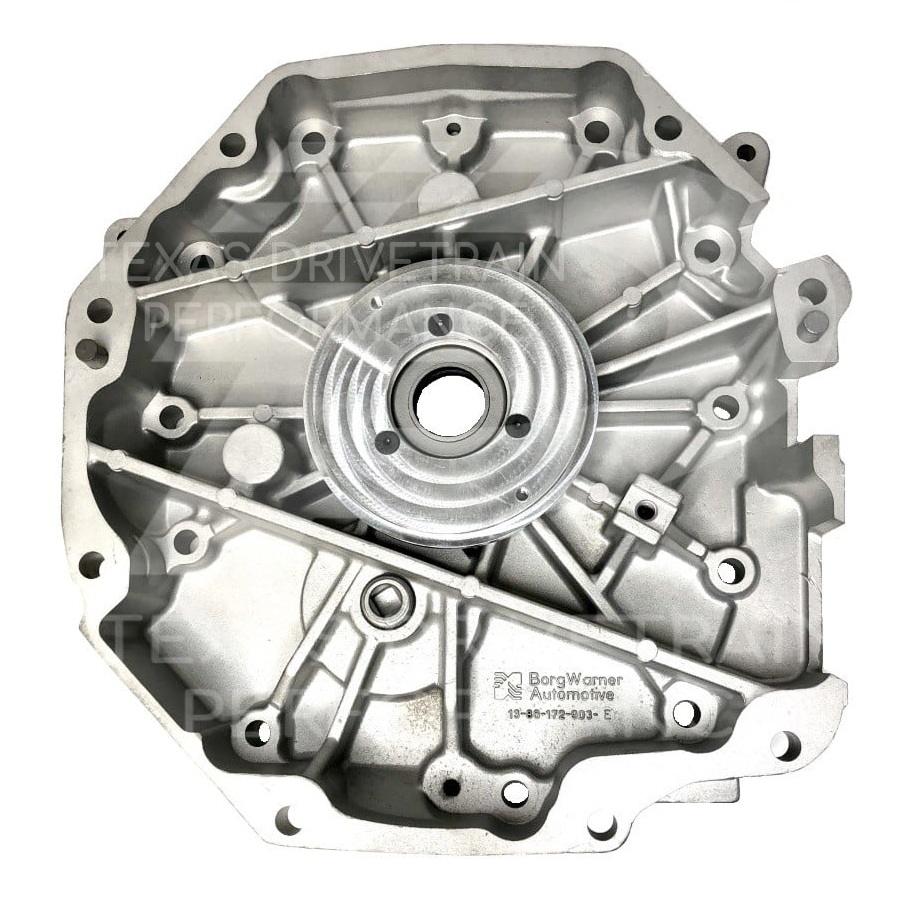

This converts a 93-97 LT1 front midplate to a 98-02 LS1 Fbody midplate
Instructions:
- Cut off the original throwout bearing tube
- Set the plate on top of the area around the throwout bearing tube

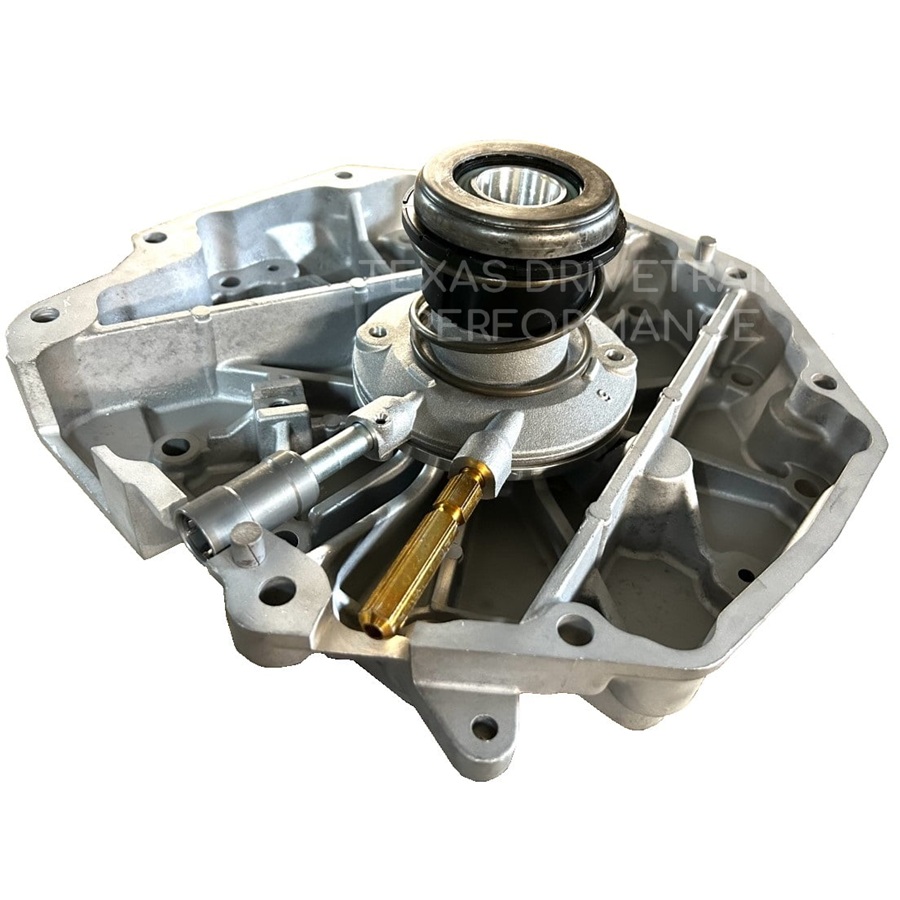

- Mock up the slave cylinder in order to get the plate in the correct position
- The outer edge of the midplate will need to be clearanced. Mark the areas where the two slave cylinder lines will need to pass through.
- Remove the slave cylinder, leaving the adapter plate in the exact position and mark the three holes

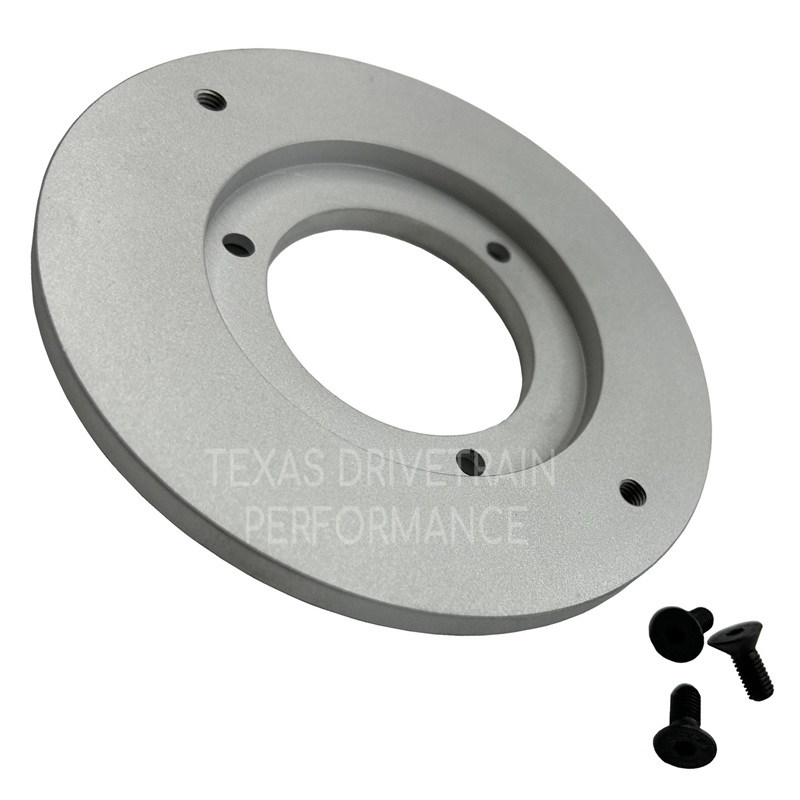

- Remove the plate, then drill/tap to 10-32 machine screw threads

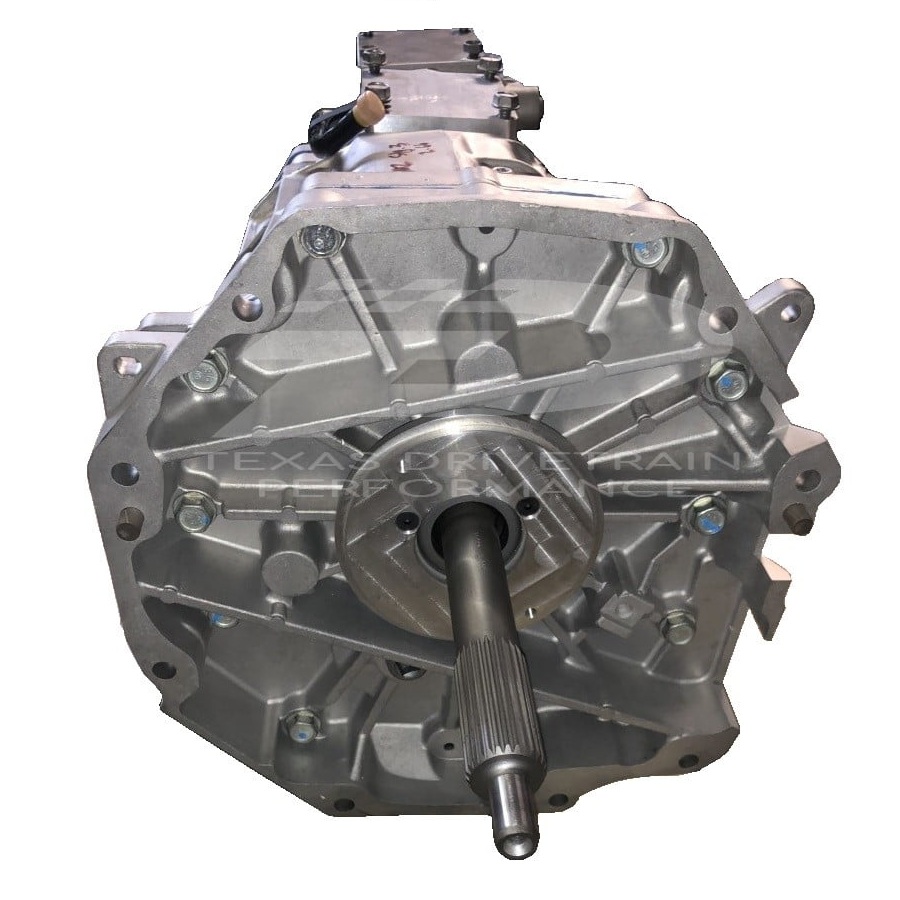

- Bolt everything up and you’re done!
ATTENTION: MACHINE SHOP WILL BE CLOSED UNTIL THE BEGINNING OF OCTOBER. DO NOT SEND IN YOUR PLATES, YOU CAN STILL PURCHASE THE ITEM AND DO THE CONVERSION YOUR SELF. WE WILL TALK YOU THROUGH IT, IT IS VERY STRAIGHT FORWARD.
Note: This needs to be precise, so if you would rather send the plate in to have us do the job, then please select that option in the dropdown box.
Interchanges with TUEP2290 & 1386-672-008
