Cadillac CTS-V Gen 2 Differential Bearing Kit – Version B

Cadillac CTS-V Gen 2 Differential Bearing Kit – Version B

Finally, a bearing kit for your Gen 2 CTS-V! We’ve invested a lot of time and effort into building these bearing kits. You won’t find them anywhere else!

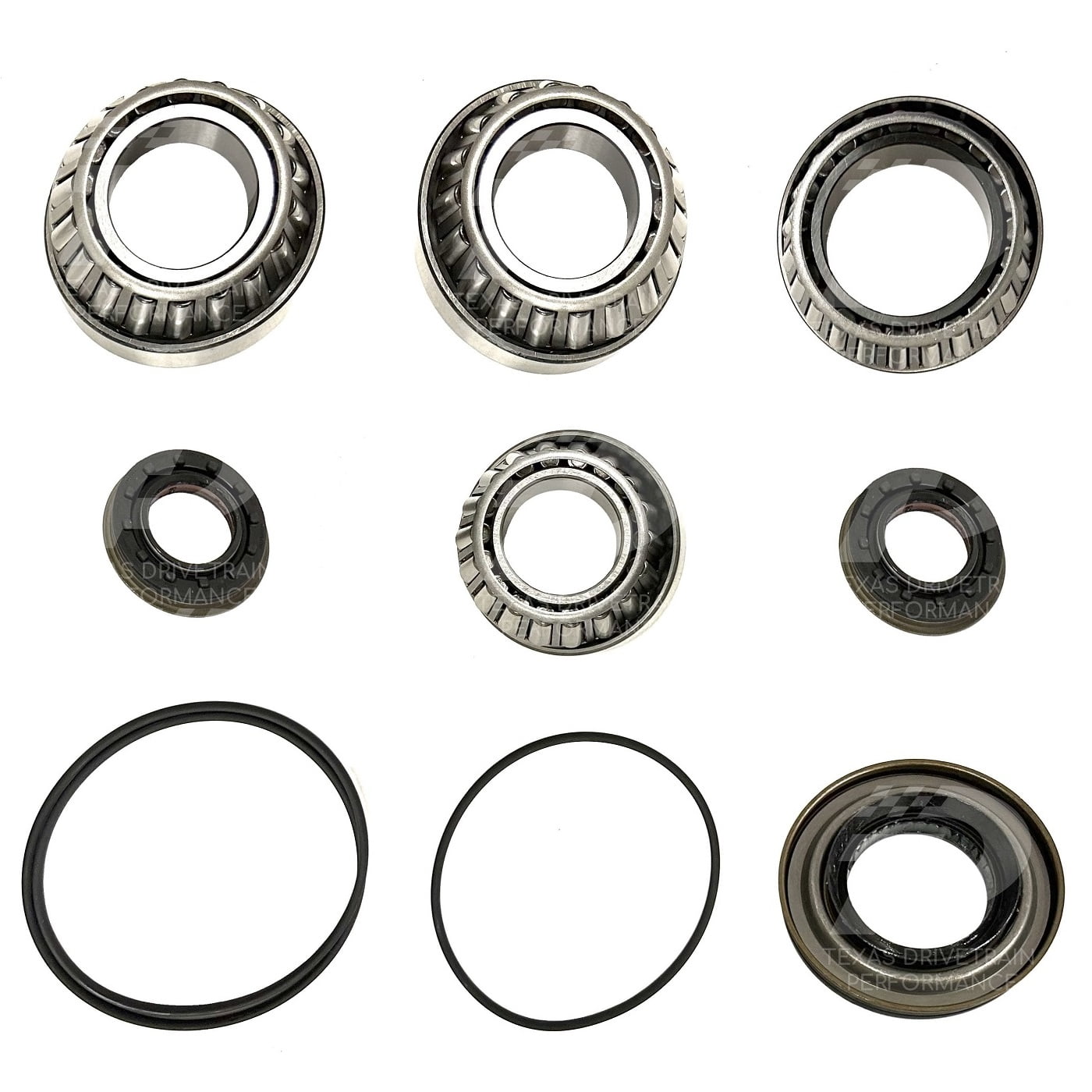

Includes the following

• Differential side bearings & races
• Inner & outer pinion bearings & races
• Axle stub shaft seals
• Pinion seal
• Pinion housing o-ring
• Case o-ring

This kit fits the 09-15 Gen 2 CTS-V

There are three different bearing kit versions between the V1 (04-07) and V2 (09-15) Cadillac CTS-V. See below to identify which one you have before ordering! If you are unsure, then please reach out to us and we’ll be glad to help.

CTS-V Bearing Kit Identification Chart

If your Cadillac CTS-V is a Gen 2 (09-15) then it’ll use this kit (Version B), but it could be Version A. We recommend physically checking the differential before ordering.

• Go underneath the car and check the following items

               Determine if the axle housing is aluminum or iron (check the item images here to help with identification).

• • • If it’s an iron diff housing, then you’ll need the Version A or Version B kit (see directly below)

Check if you can physically see the pinion seal at the front of the differential assembly behind the yoke

• If you can see it, then it’s the larger 4 3/8″ seal and will use this (Version B) kit
  • Version B: Cast Iron Housing with a 4 3/8″ pinion seal

• If you cannot see the seal because it’s blocked by the pinion yoke dust shield, then it’s the smaller 3 3/8″ seal and will use the kit below
  • Version A: Cast Iron Housing with a 3 3/8″ pinion seal

    We recommend using a tape measure to verify the size of the pinion seal

If you have the aluminum housing, then you’ll need this kit listed just below

• Version C – Cast Aluminum V1 Housing with 3 3/8″ seal
