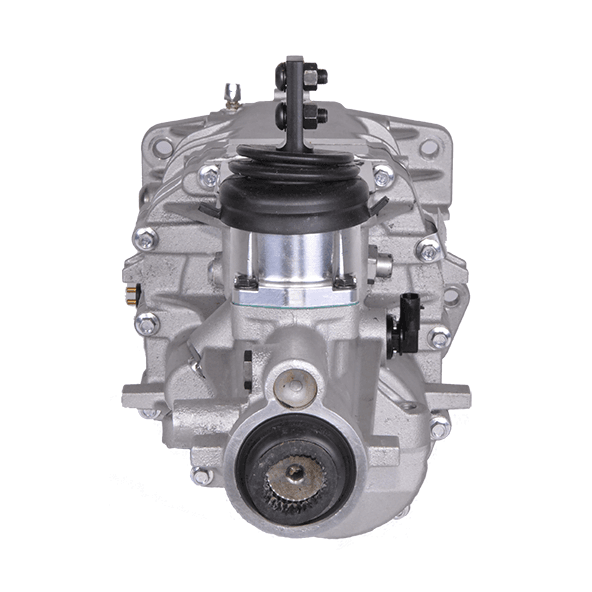

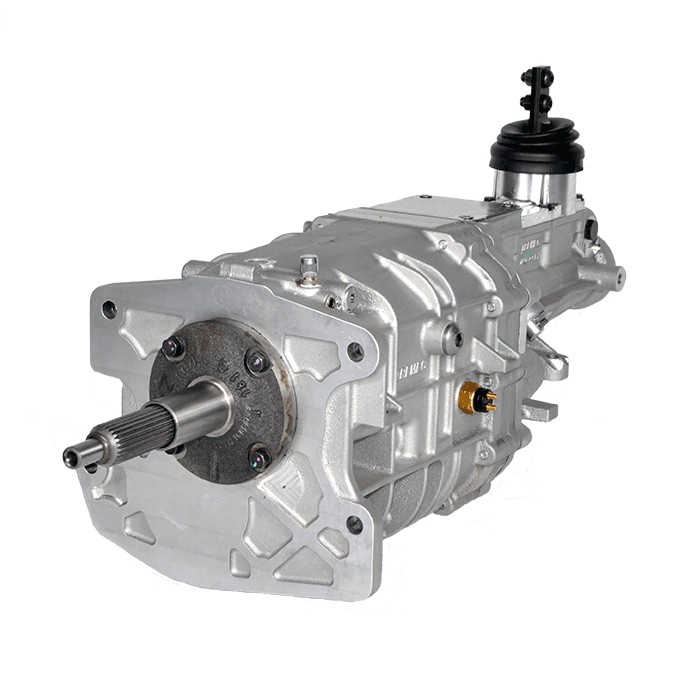

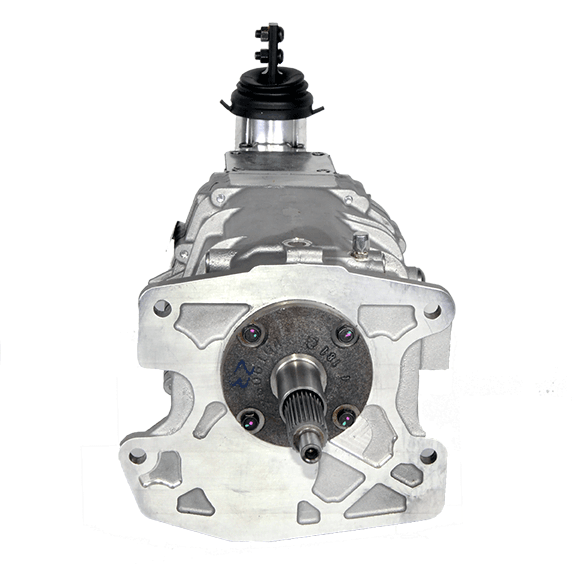

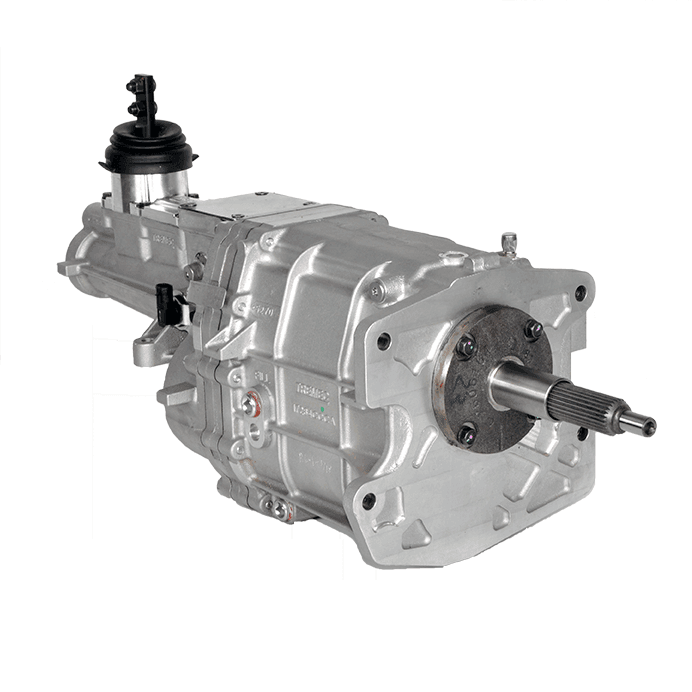

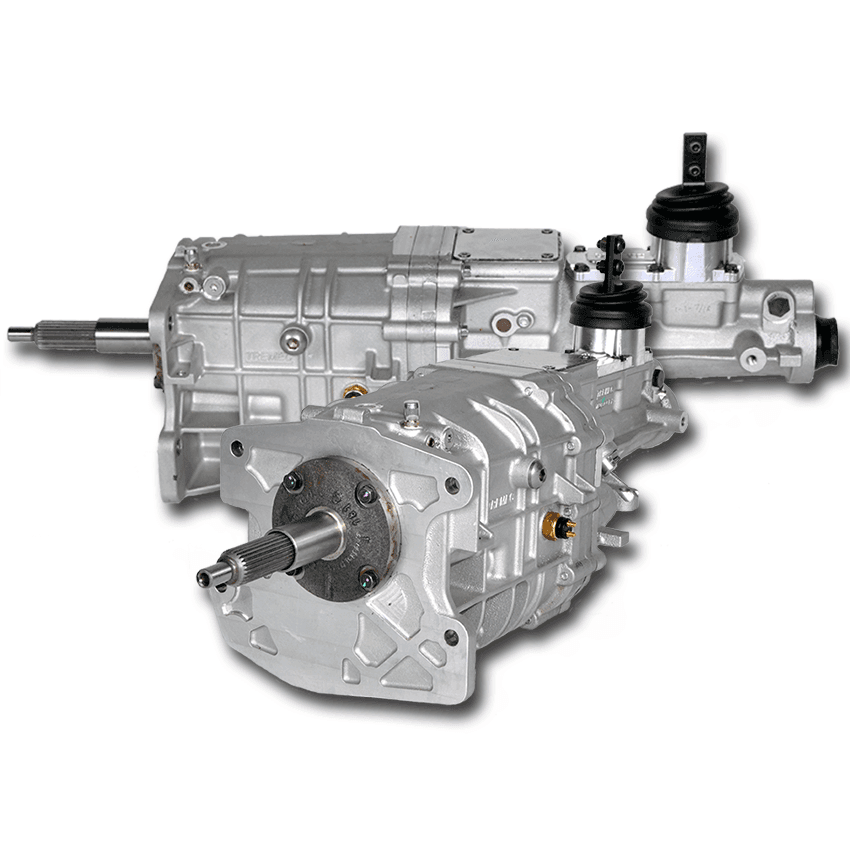

Tremec Ford TKX 5-speed Transmission TCET18084

Tremec Ford TKX 5-speed Transmission TCET18084

Gear ratio

• 2.87, 1.89, 1.28, 1.00, 0.81

Fitment

• Designed for multiple applications with three shifter locations
• Compact size provides clearance in most transmission tunnels without floor modifications
• Accepts a manual clutch cable or electric speed sensor
• 26-spline input/31-spline output

Strength and durability

• Gears and shafts made of 4615 high-grade steel alloy, providing increased torque capacity
• Increased case strength with three-piece aluminum housing provides outstanding structural integrity
• Durability is further optimized with oversized gear widths
• Gaskets at all flanges and caged needle bearings in all gears, simplifying assembly and eliminating possible fluid leaks
• Rated at 600 lb/ft

Smooth shifts

• Equipped with a high-performance short-throw billet aluminum shifter that isolates road noise, while providing clean, crisp shifts
• Superior shifting ability through the use of multi-cone carbon-hybrid synchronizer rings
• Capable of engine speeds of 8,000 RPMs and shifts at 7,500 RPMs

Low noise

• Noise, vibration and harshness (NVH) performance is optimized with a gear layout to best control stress levels
