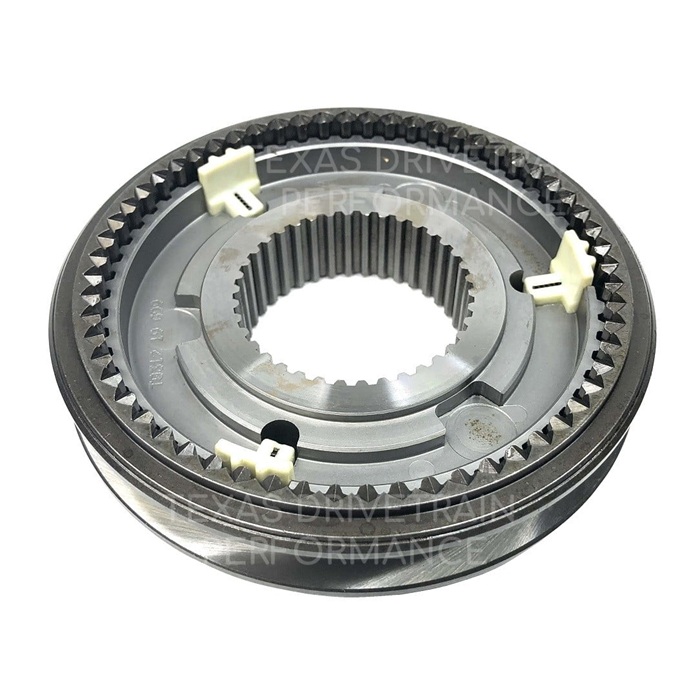

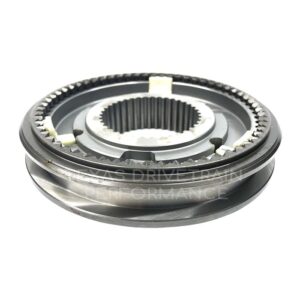

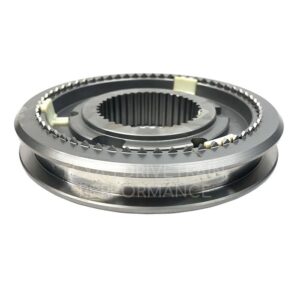

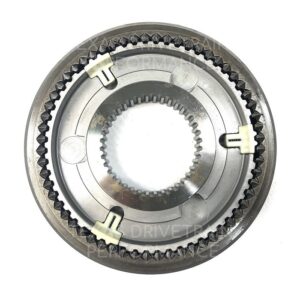

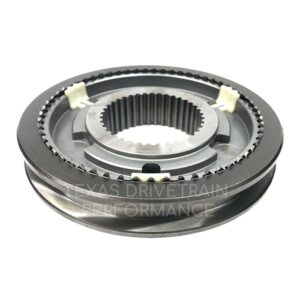

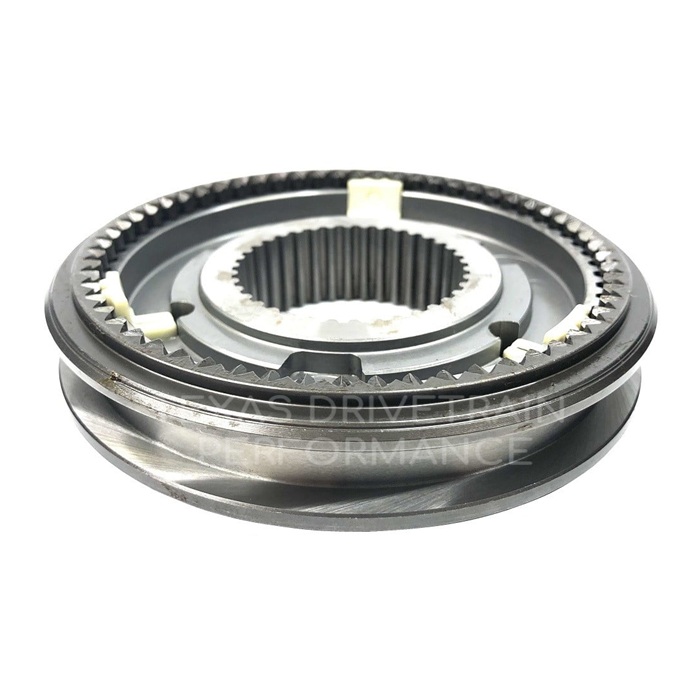

TR6060 1-2 / 3-4 Synchro Assembly (Hybrid Tooth)

TR6060 1-2 / 3-4 Synchro Assembly (Hybrid Tooth)

• Hybrid synchro assembly which means that it has a different engagement tooth design on each side

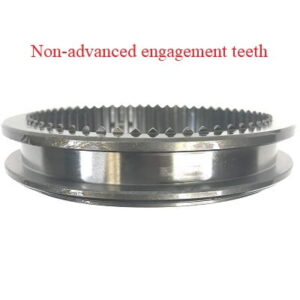

• One side has raised (non-advanced) teeth and the other side has flush (advanced) teeth
• The engagement tooth design must match the gear in which it goes to

Fitment

Fits all TR6060 units in the 1-2 position or 3-4 position. See below for details

• Typically used for 3-4 but can also be used on 1-2
• The engagement teeth must match up. Please refer to the photos to be certain that this assembly will work
• If you have advanced teeth on both of the applicable gears then you will need the TR6060 1-2 Synchro Assembly (Advanced Tooth)
• If you have non-advanced teeth on both of the applicable gears then you will need the TR6060 1-2 / 3-4 Synchro Assembly (Non Advanced)

Interchanges with TUES10285 & TUES11838
