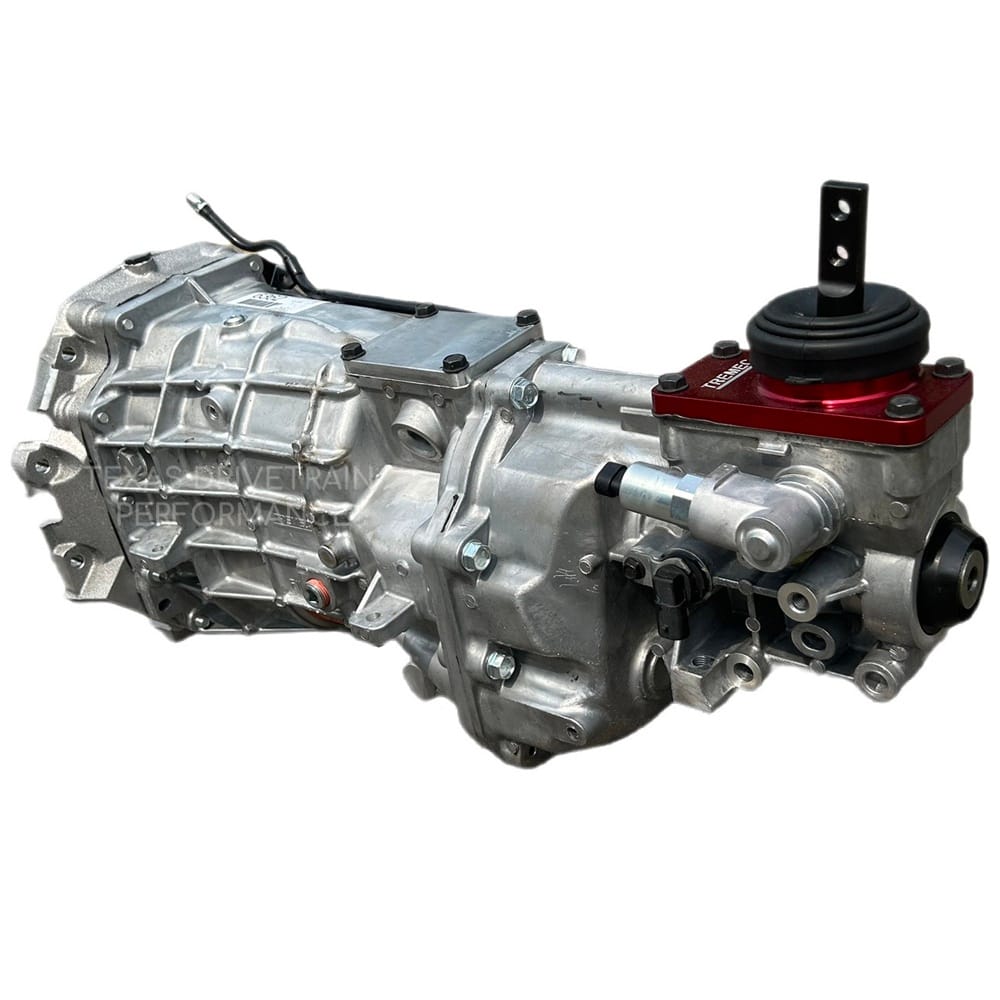

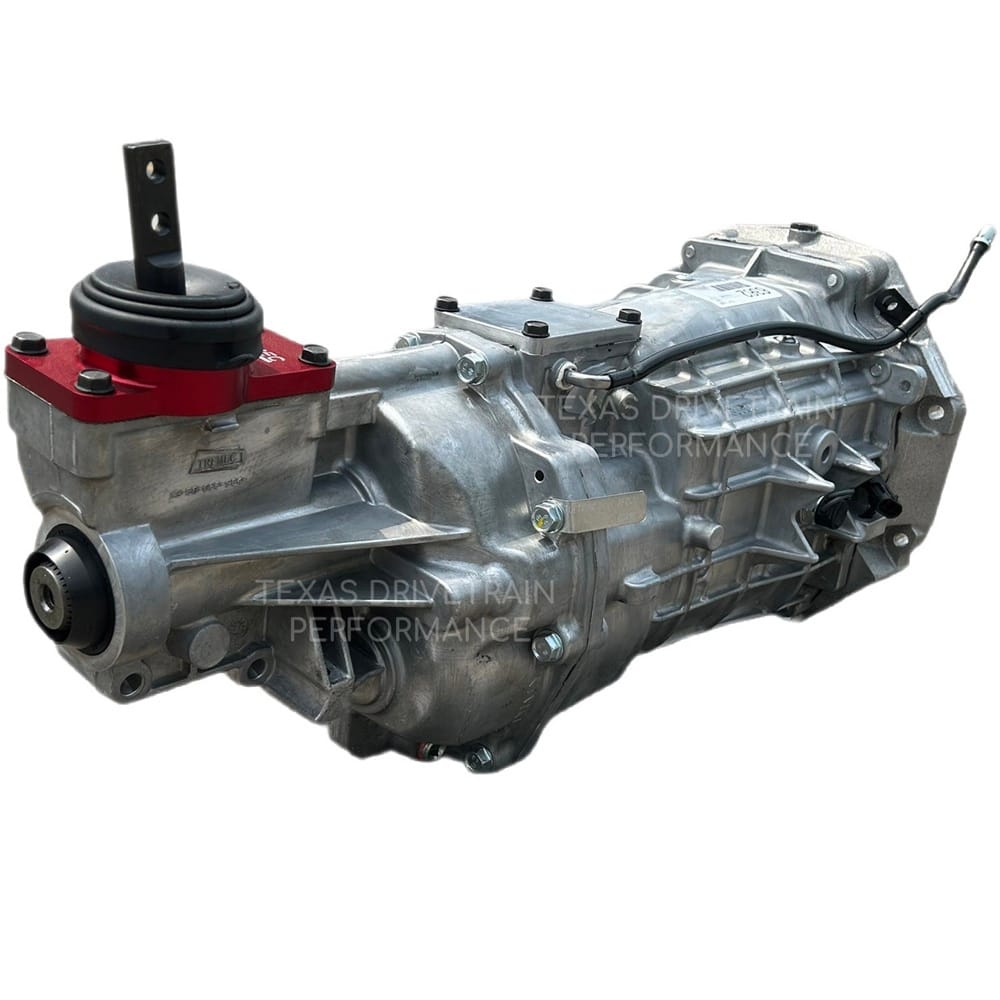

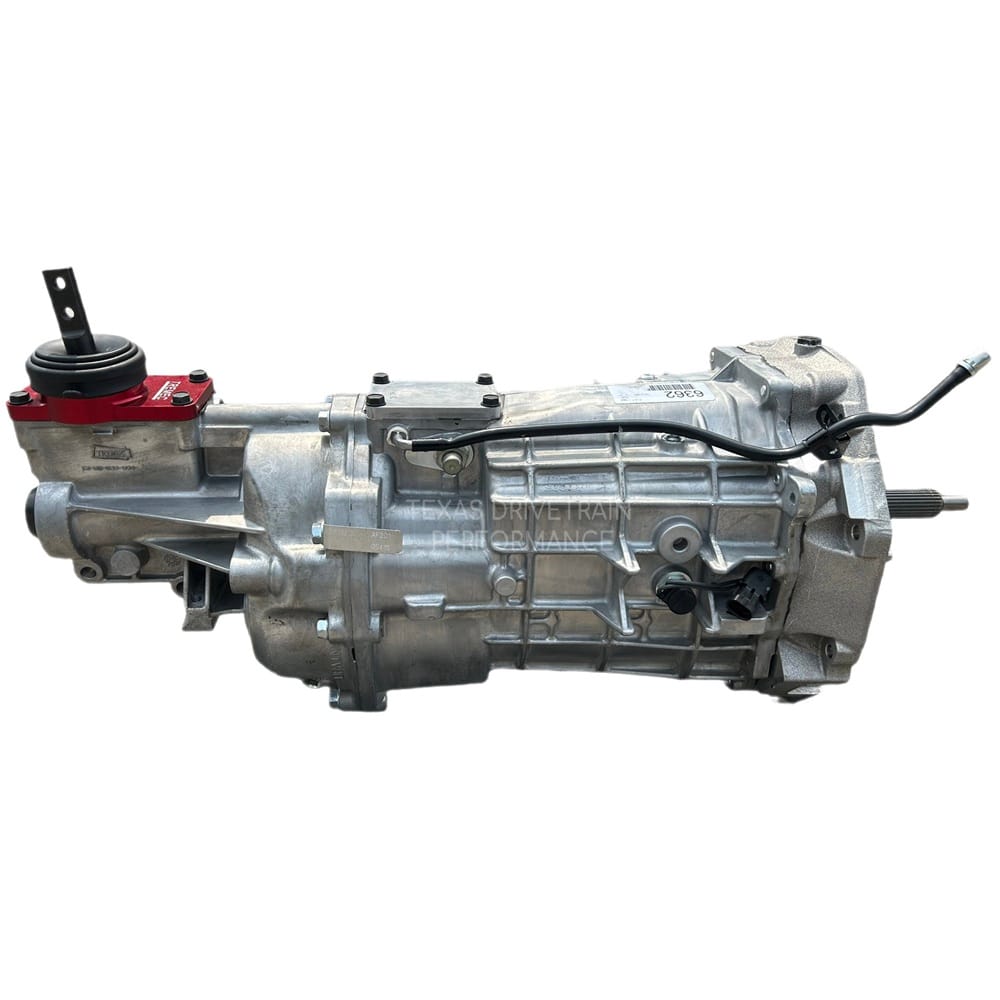

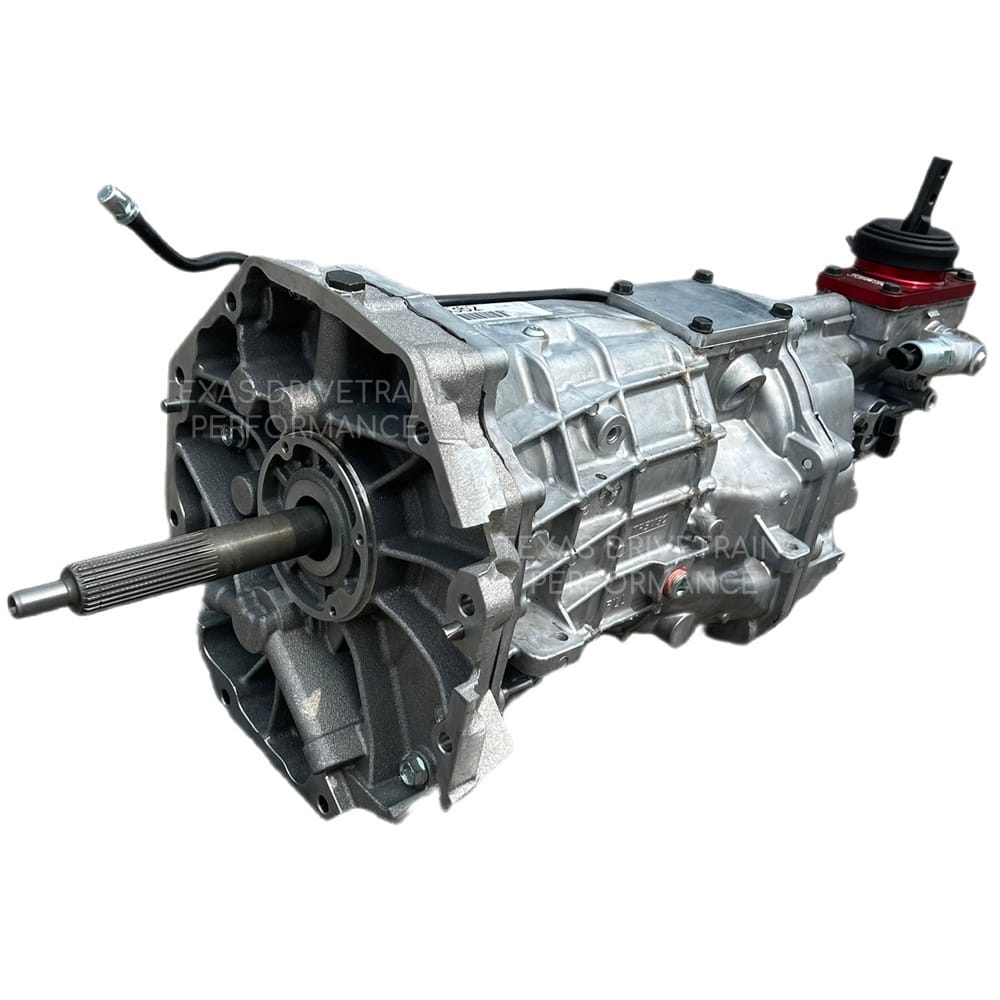

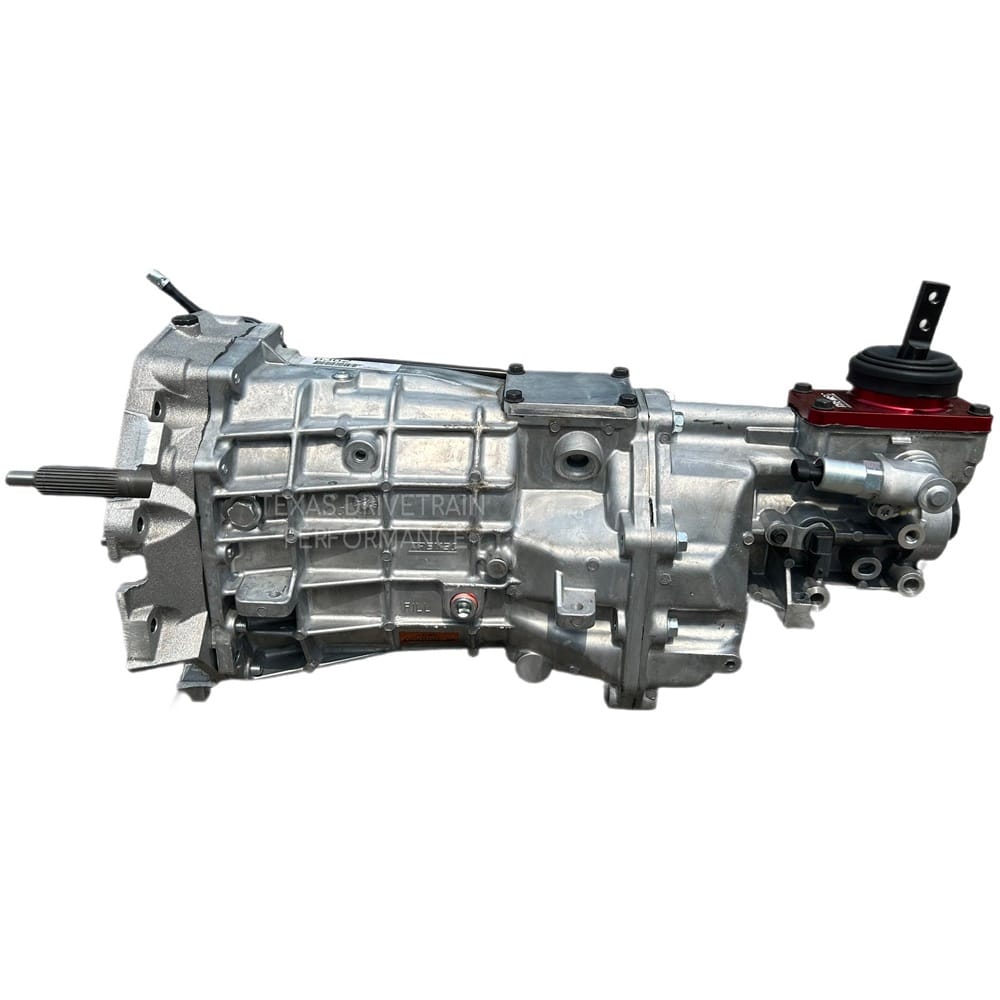

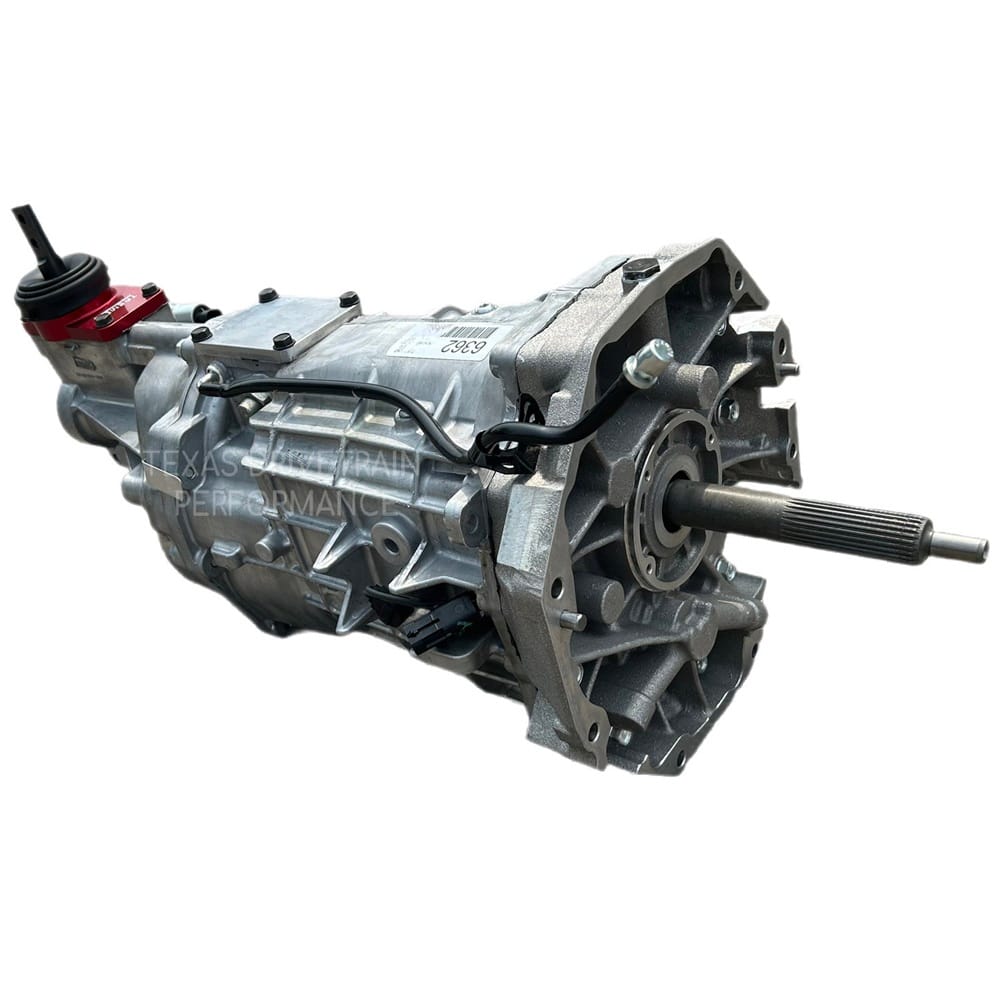

Tremec TR6060 Magnum F Transmission – Close Ratio TUET16362


The Magnum is an aftermarket version of the same transmission featured in many of today’s most recognized factory supercars, like the ZR1 Corvette and the ACR Viper. It is known in its original form as the ‘TR-6060.’ Inside, the Magnum-F is equipped with the same high-quality components found in many of today’s most powerful OEM muscle and sports cars. The Magnum-F has a wider face width on all gears than the T-56, as well as a powerful mix of double and triple cone synchronizers, improved webbing in the main case, and facilities for a cooling circuit.

TR6060 Magnum F Transmission Features

Input Shaft: 26 spline
Output Shaft: 31-spline
Gear ratios: 2.66, 1.78, 1.30, 1.00, 0.80, 0.63 close ratio

Shifter location: Same as the 93-02 fbody. The “fbody” tailcase is used, making it a direct replacement for old Borg Warner or “LS T56” transmissions.

What fluid does a TREMEC transmission use?

TREMEC transmissions use the Dexron III or Dexron III/Mercon non-synthetic ATF fluid.

Need Help Deciding?
SKU: TUET16362 Category:
Product Warranty
Weight150 lbs
Dimensions39 × 18 × 18 in
